Say good bye to patchwork charging solutions
Complete turnkey delivery
Amp5 is delivered fully equipped with all components pre-tested and designed to work seamlessly together for maximum reliability.
You avoid cable routing, groundworks, and the hassle of making different hardware components work together.
The scalability is virtually unlimited.
No groundworks. No cabling
In Amp5, all cabling is fully integrated. This not only saves time but also prevents damage to existing ground installations and eliminates the need to deal with unknown or challenging ground conditions.
Simple & quality-assured assembly
Amp5 consists of modules that easily are assembled together. The simple and quality-assured assembly ensures a reliable and correctly executed installation every time.
Quick configuration
Unlike traditional charging stations, Amp5 is configured centrally at the system level using a comissioning.
Easily add more charge points
Amp5's modular system makes it effortless to add more charging points. Discover how easy it is to expand your Amp5 setup.
Install it your way

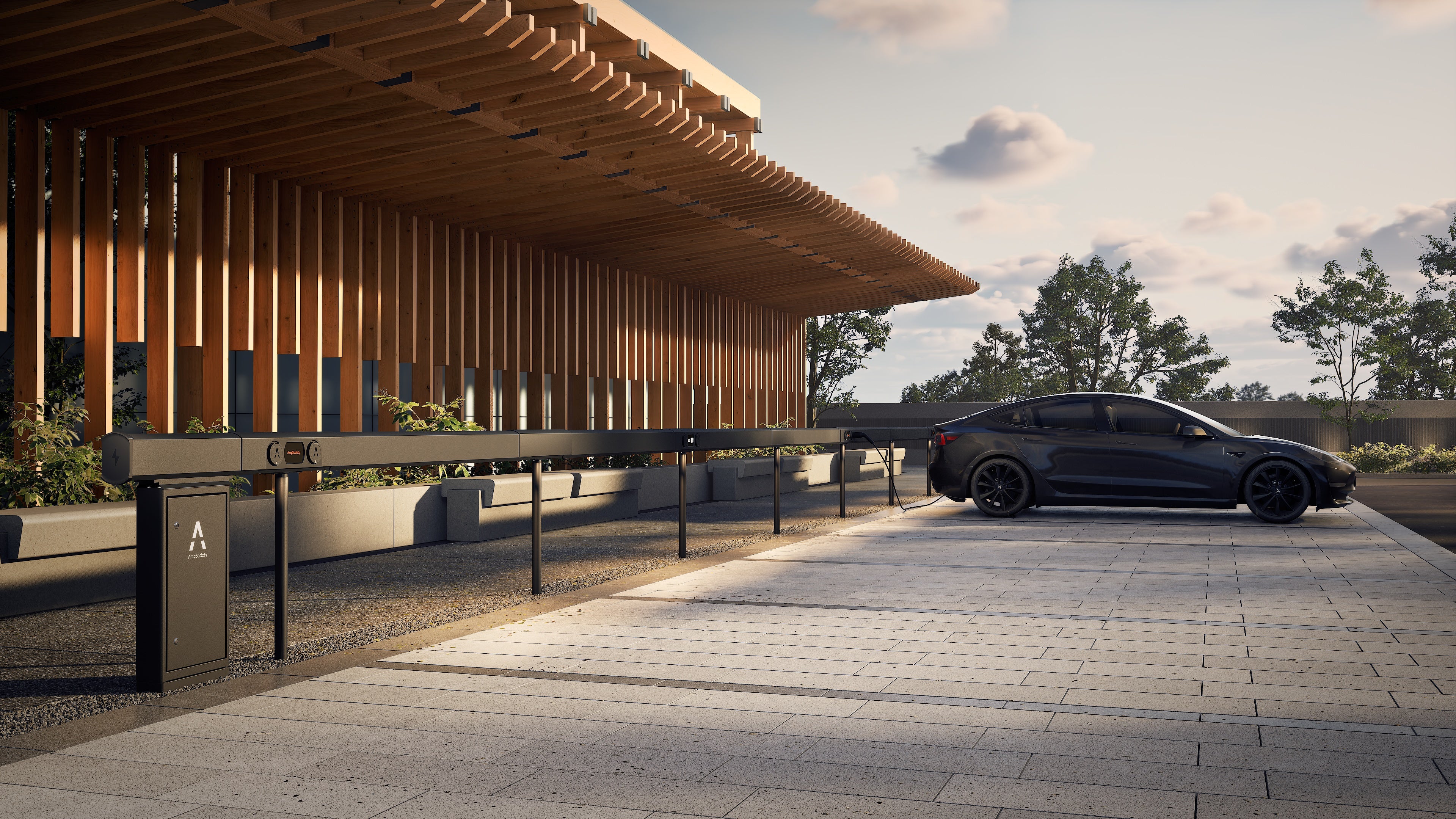

On ground
Ground mounting requires minimal digging thanks to compatibility with ground screws or stakes.
On wall
Amp5 features wall mounts, making it easy to install the system on walls.
Amp5 modules
All Amp5 modules are pre-tested and designed to work seamlessly together, ensuring maximum uptime.
SmartHub
SmartHub is the heart of Amp5, featuring redundant connectivity, remote-controlled residual current protection, centralized surge protection, battery backup, dynamic load balancing, and OTA software updates.

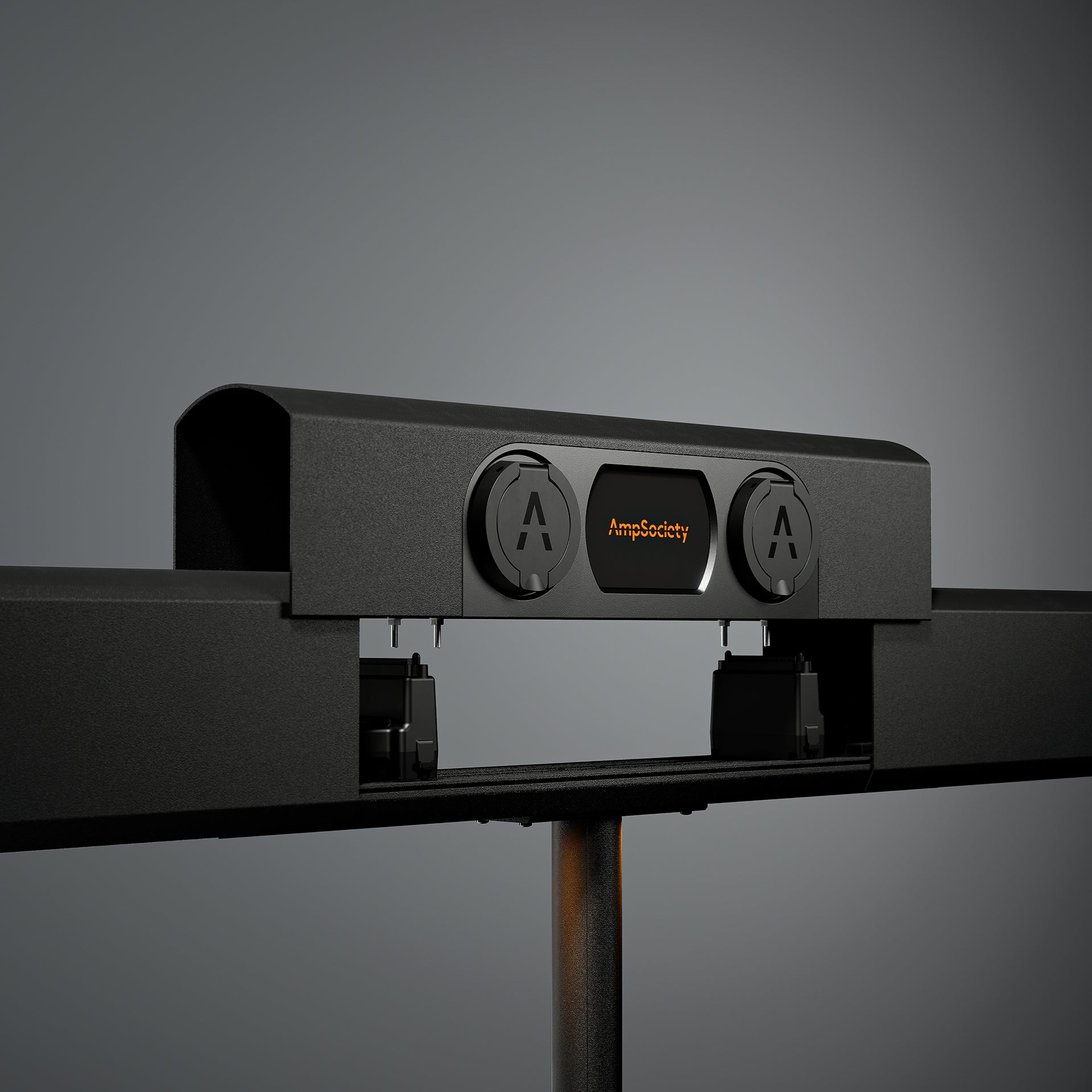

ChargePod
ChargePod includes one or two charging ports and a display for real-time communication, supporting charging with digital QR codes and encrypted RFID or phone tag.

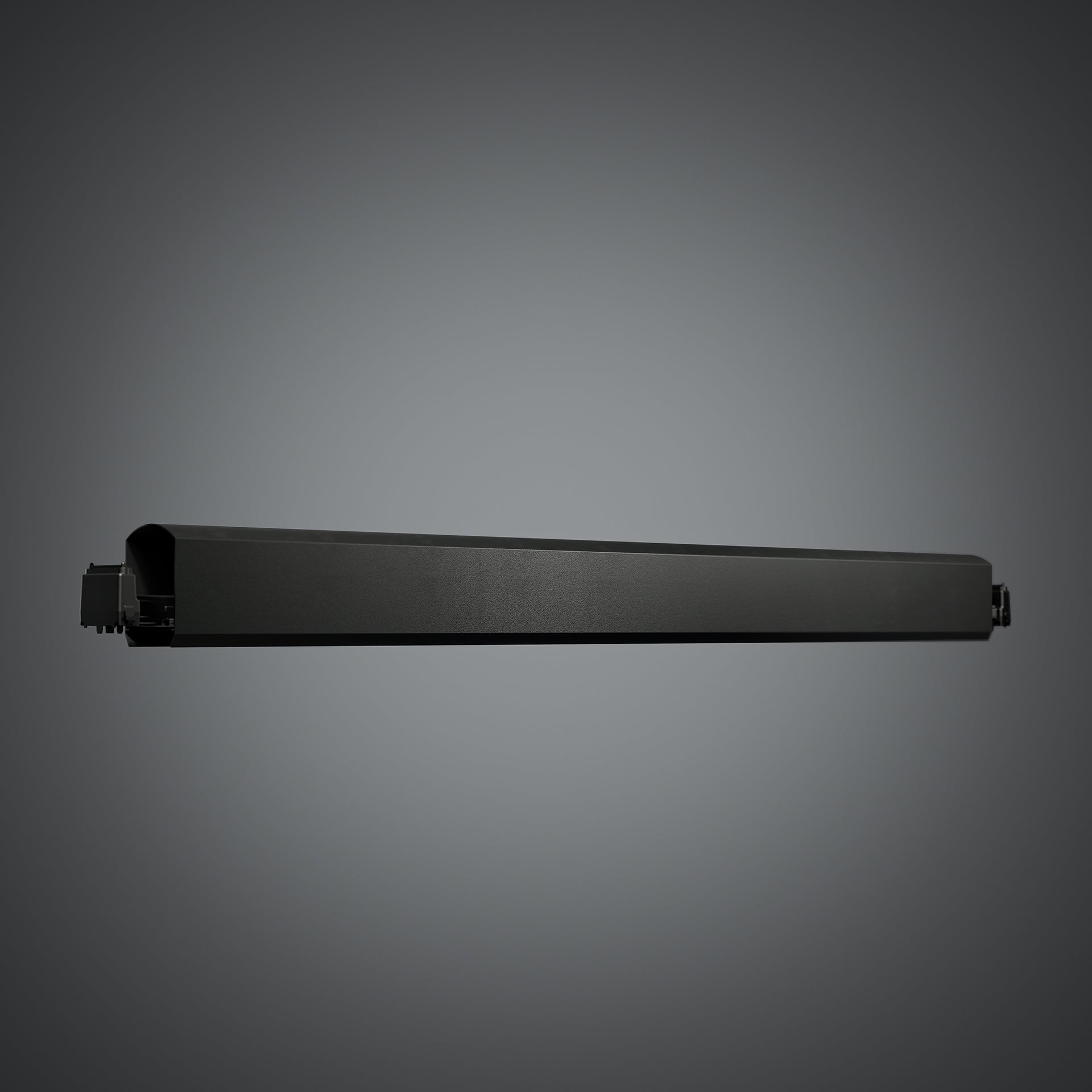

ConnectBar
ConnectBar is the fast connector for linking two ChargePod units and can be adapted to support parking spaces between 2.3 and 3.3 meters wide.
LED
Amp5 is available with integrated LED lighting to enhance both safety and comfort in your parking area.
Color temperature: 4000K, Power: 8 W per meter, Luminous flux: 1050 lm per meter.
Amp5 Data sheet
| Max number of charging outlets | 54 per SmartHub¹ |
|---|---|
| Max number of simultaneous charging sessions | 30 per SmartHub¹ |
| Max incoming current | 63A |
| Max simultaneous charging power | 44kW |
| Max charging power per outlet | 22kW (3-phase), 7.4kW (1-phase) |
| Main fuse | 63A |
| Communication protocols | OCPP 1.6J / OCPP 2.0.1 / ISO15118-20 ready |
| Network connection | Teltonika RUT 901 with 4G SIM card & LAN. Wifi hotspot (only for configuration) |
| RF Technology | GSM, GPRS, EDGE, UMTS/HSPA+, LTE |
| RFID type | ISO/IEC 14443 Type A, 13.56 MHz Mifare |
| Current measurement | MID certification expected in H1 2025 |
| 24V input for external breaker | Yes |
| Static load balancing (fixed value) | Yes |
| Dynamic load balancing | Yes, via Internet or locally (Modbus TCP/RS-485) |
| Residual current device | Typ B per outlet (IEC60947-2) |
| Fuse | 32A per ChargePod (IEC60947-2) |
| Automatic circuit breaker | 63A, 32A B-characteristics |
| Battery backup (UPS) | Capacitor |
| Charging outlet type | Type 2, IEC 61851 |
| Display | TFT 480x272px, (HxDxW): 160 x 131 x 71 mm |
|---|---|
| Temperature range – operation | -30°C to +45°C air temperature |
| Temperature range – non-operation | -30°C to +65°C non-condensing |
| Material | Aluminium, at least 75% recycled (post-consumer scrap) |
| Color | Black (RAL 9011), powder-coated |
| Lock | EBR-lock ”Stockholm” |
| IP rating | IP44 |
| IK rating | IK10 |
| Color temperature 4000K, Power 8 W/m, Luminous flux 1050 lm/m | |
| Other | Customizable display content (logo, QR code, price, etc.). RCD test with magnetic sensor. User interaction via QR code, RFID, NFC. Lockable charging outlets. |
1 For more than 54 charging outlets, an additional SmartHub is added to Amp5.
